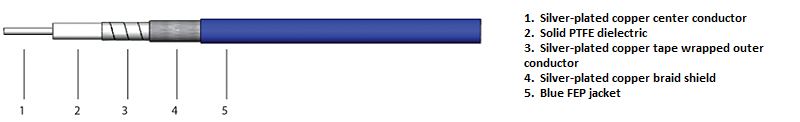

FSC Cable Structure

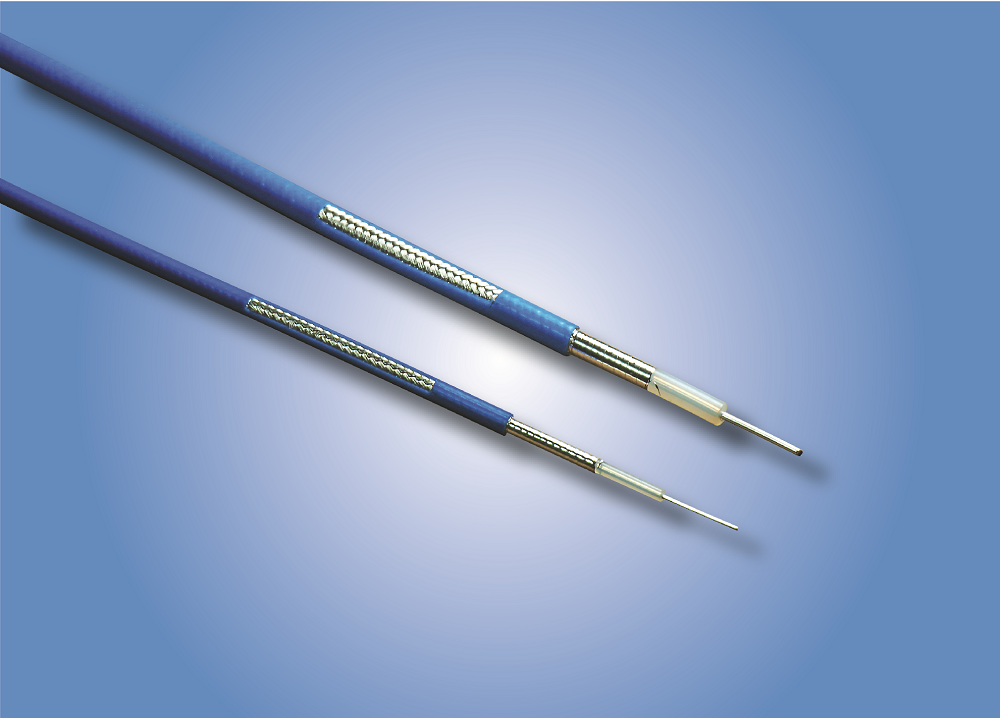

FSC Cable
Low Cost Semi-Flexible Coaxial Cable

FSC series cable provides an economical conformable cable replacement for applications requiring greater flexibility and bending cycles. This series matches the performance of Times TFlex cables and uses the same solder-on connectors as standard semi-rigid cable.

This cable consists of a silver-plated copper center conductor, solid PTFE dielectric, silver-plated copper tape outer conductor, silver-plated copper braid shield, and a UV and corrosion resistant blue FEP outer jacket. Typical applications for FSC series cables are test setups, interconnection, and instrumentation. It is available for quick delivery as cable or finished cable assemblies with custom labeling. There is no minimum order quantity.

Features


• - Meets MIL-C-17

• - Low cost

• - Flexibility

• - Greater bending cycles

• - Good electrical properties

• - Long service life

• - Replacement for semi-rigid cable

Applications


• - Card interconnection

• - Cabinet jumpers

• - Airborne radar

• - Missile systems

• - Phased array radars

• - Feed networks

• - Instrumentation

• - Test setups

Performance Data

Cable Comparison Sheet
